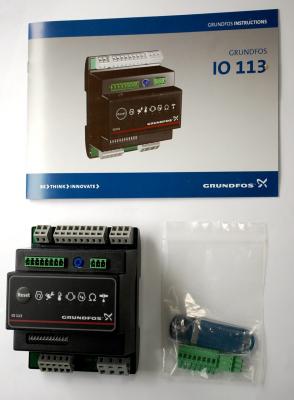

The IO113 is an input / output interface between controllers and wastewater pumps equipped with sensors or a sensor board. The most important information is shown on the front panel. One pump only can be connected to each IO113 module.

The SM113 is used for the collection and transfer of sensor data. SM113 must be combined with an IO113 with communication module (part number 98097390). The SM113 can collect data from more sensors.

Applications:

The IO113 module is used together with wastewater pumps in wastewater applications to give more protection for the pumps.

Features and Benefits:

The IO 113 can collect data from the following sensors and inputs:

• motor temperature
• water content % in oil
• stator insulation resistance
• bearing temperature
• digital measurement of moisture in the motor

The SM 113 can collect data from the following sensors and inputs:

• bearing temperature
• vibration in pump
• leakage (water in oil / water in air)
